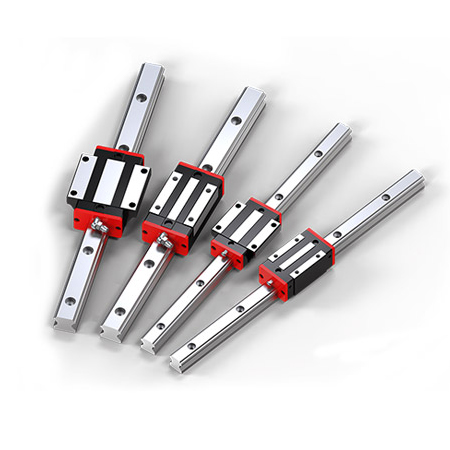

Linear guideway allows a type of linear motion that utilizes rolling elements such as balls or rollers. By using re-circulating rolling elements between the rail and the block, the load platform can easily move linearly with high precision along the slide rail. Compared to a traditional slide, the coefficient of friction for a linear guideway is only 1/50. With these features, linear guideways can greatly enhance moving accuracy, especially, when accompanied with precise ball screws.

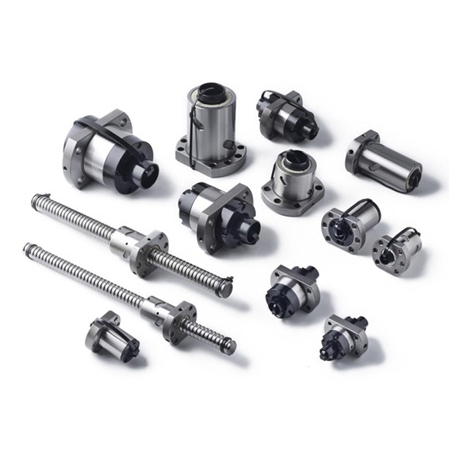

We are the manufacturer of linear motion products, ball screw is one of our successful product, it performs well at noise control. Ball screw are ideal for converting rotary motion into linear motion or converting linear motion into rotary motion. Ball screw is the most commonly used transmission component in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion or to convert torque into axial repetitive force, which is high precision,reversibility and high efficiency.

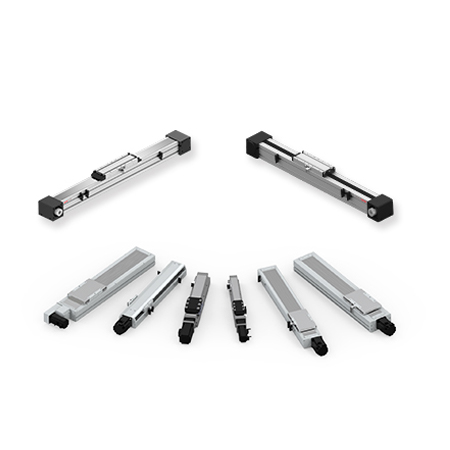

Our linear modules are divided into belt driven type and ball screw driven type, we provide both close and open type for different working environment.
For our basic type, the repositioning accuracy of ball screw driven actuator is ±0.01mm mm, maximum speed, a meter per second. For belt driven actuator, precision is ±0.05mm mm and maximum speed 5 meters per second. The design includes belt support, so it can provide long meters solutions, we have many successful applications, the maximum one reached 12 meters.

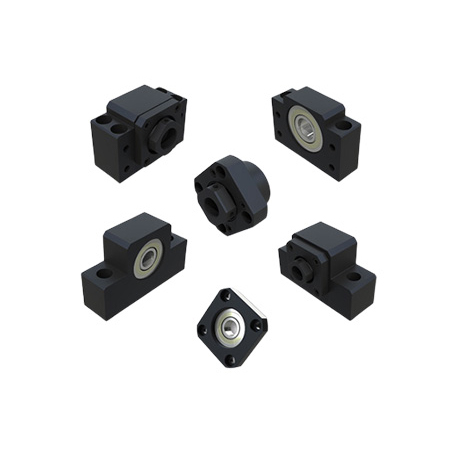

The support seat is the bearing fixed seat connecting the screw rod and the motor. It is the shaft end product of the standard ball screw. Support units are composed of a bearing housing,bearing,holding lid,seal,lock nut and set screws.The support unit can be used on Fixed and supported ends for the ball screw,which mounts the ball screw in the desired position. Limon offers various ball screw support units to satisfy the mounting or loading requirements of any application.The support unit can be used in the fixed end and the support end of the ball screw respectively to fix the screw in the correct position. It is compact in size, easy to install, and can be installed in a narrow space. Because the bearing already contains proper grease and is adjusted to the proper condition, it can be assembled to the equipment immediately without additional adjustment and processing, so as to reduce the assembly time and improve the accuracy and stability of assembly.

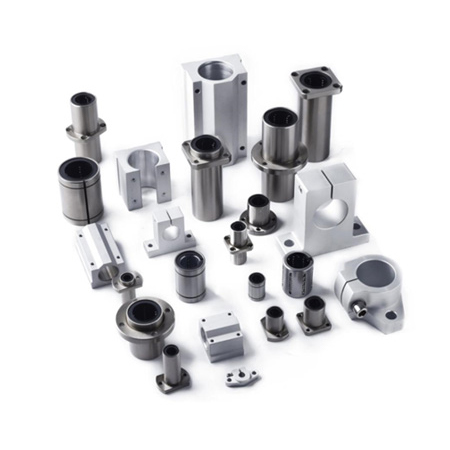

Linear bushing have the advantages of wide product range, unique automatic workshop, different design and nickel coating & steel cage available. We start to export linear bushing from 2003. Due to our reliable quality and service, we soon become a leading manufacturer of linear bushing in China , and we built a good image and reputation in the oversea market.We have more 15 year experences for linear bushing parts. In the begining we help our JAPANESE customer do OEM. After so many year experence, now we are the leading manufactuer of linear bushing in China and also we are the only automatic manufacturer to produce linear bearing in China.

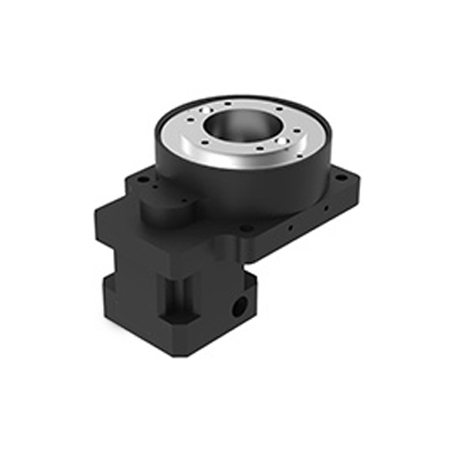

The Hollow Rotary Actuator is one kind of product for the circular motion between the cam index and DD motor. It can realize the multi-point orientation as DD motor but has better cost performance than DD motor. And it is widely used in diverse applications.
