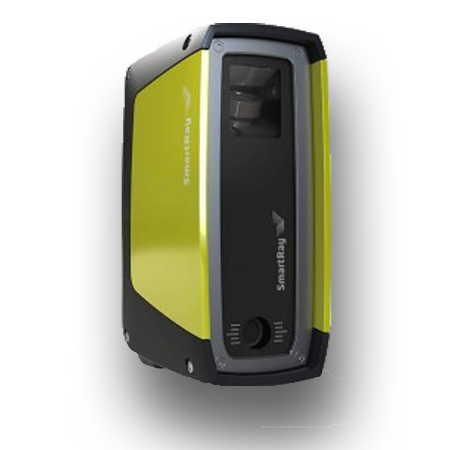

ECCO 65: ECONOMIC & COMPACT
BEST PRICE-PERFORMANCE 3D SENSOR
The ECCO 65 delivers a competitive 3D sensor for applications where price and speed are vital, for simple measurement and inspection tasks. It balances cost and performance to provide 3D laser scanning for customers where previously 3D laser scanning was not a commercially viable solution.
PROPERTIES & BENEFITS
High Scan Rate – for fast production lines
Exceptional value – Best price performance sensor
Increased Repeateability – for reliable inspection and measurement
| ECCO 95.020 | ECCO 95.050 | ECCO 95.100 | |

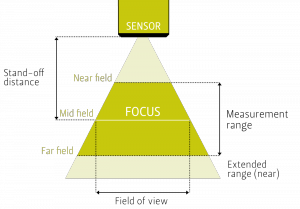

| Typical field of view (near | mid | far) (1) | 17| 18| 19 mm | 36| 49| 62 mm | 62| 95| 125 mm |
| Typical measurement range (1) | 16 mm | 100 mm | 250 mm |
| Stand-off distance | 60 mm | 150 mm | 325 mm |
| Typical vertical resolution (Z) (1) | 1.4-1.8 μm | 5 – 12 µm | 12-50 μm |
| Typical lateral resolution (Y) (1) | 18-20 μm | 42 – 70 µm | 66-138 μm |
| Z-linearity (2), (5) | 0.01% (0.1 µm/mm) | 0.008% (0.01 µm/mm) | 0.01% (0.1 µm/mm) |
| Z-repeatability (4), (5) | 0.1 μm | 0.8 µm | 6 μm |
| weight | Approx. 480 g | Approx. 480 g | Approx. 480 g |
| part numbers | 3.005.321 (laser class 2) 3.008.321 (laser class 3R) | 3.005.320 (laser class 2) 3.008.320 (laser class 3R) | 3.005.324 (laser class 2) 3.008.324 (laser class 3R) |
| Maximum points / 3D profile | 960 | ||
| Typical scan rate (3) | Approx. from 150 Hz up to 5 kHz | ||
| Typical 3D point rate (3) | Approx. from 0.3 up to 4.8 million points/sec | ||
| Interface | Gigabit Ethernet ( 1 Gbit/ sec) | ||
| Inputs | 4 x Inputs, 5 – 24 VDC Quadrature Encoder (AB-Channel, RS-422 Standard) | ||
| Outputs | 2 x Outputs, 24 VDC | ||
| Trigger | START Trigger support on Input 1 – 2 DATA Trigger support on Quadrature Encoder Input (Max. DATA trigger rate: 100 kHz) DATA Trigger support on Input 2, 3 (Max. DATA trigger rate: 10 kHz) | ||
| Input voltage | Power | 24 VDC, ± 15 % ripple | 7.5 W | ||
| Laser wavelength | 660nm | ||
| Laser class (standard | optional) | 2M | 3R | ||
| Maximum ambient light | 10,000 lx | ||
| EMC test | as per EN 61 000-6-2, EN 61 000-6-4 | ||
| Vibration/ Shock test | as per EN 60 086-2-6, -27, -29, -64 | ||
| Electrical safety | as per EN 61 010-1-3 | ||
| Protection class | III, as per EN 61 040-3 | ||
| Enclosure rating | IP65 | ||
| Air humidity | Maximum 90%, non-condensing | ||
| Temperature (operation | storage) | 0 – 40° C | -20 – 70° C | ||
| Compatible accessories | Power-I/O-Encoder cable: 6.320.0XXEthernet cable: 6.303.0XX | ||
(1) Typical values can vary up to 5% due to optical tolerances
(2) Z-Linearity calculated as a variation of “bias” (reference value vs. measured value) over the measurement range
(3) Scan rate & point rate are dependent on the configured field of view, measurement range and exposure time. A ‘scan’ by definition considers maximum points/3D profile i.e. full FOV. The typical scan/point rate range has been estimated considering an exposure time of 1 µsec, min-max MR and full FOV. The typical scan rate can be further boosted by windowing the FOV
(4) Experimentally assessed by scanning a fixed measurement target 4100 times successively within short time interval. No post-processing filters applied
(5) Measurements performed on a SmartRay standard artifact which is an aluminium flat matt surface painted matte white
