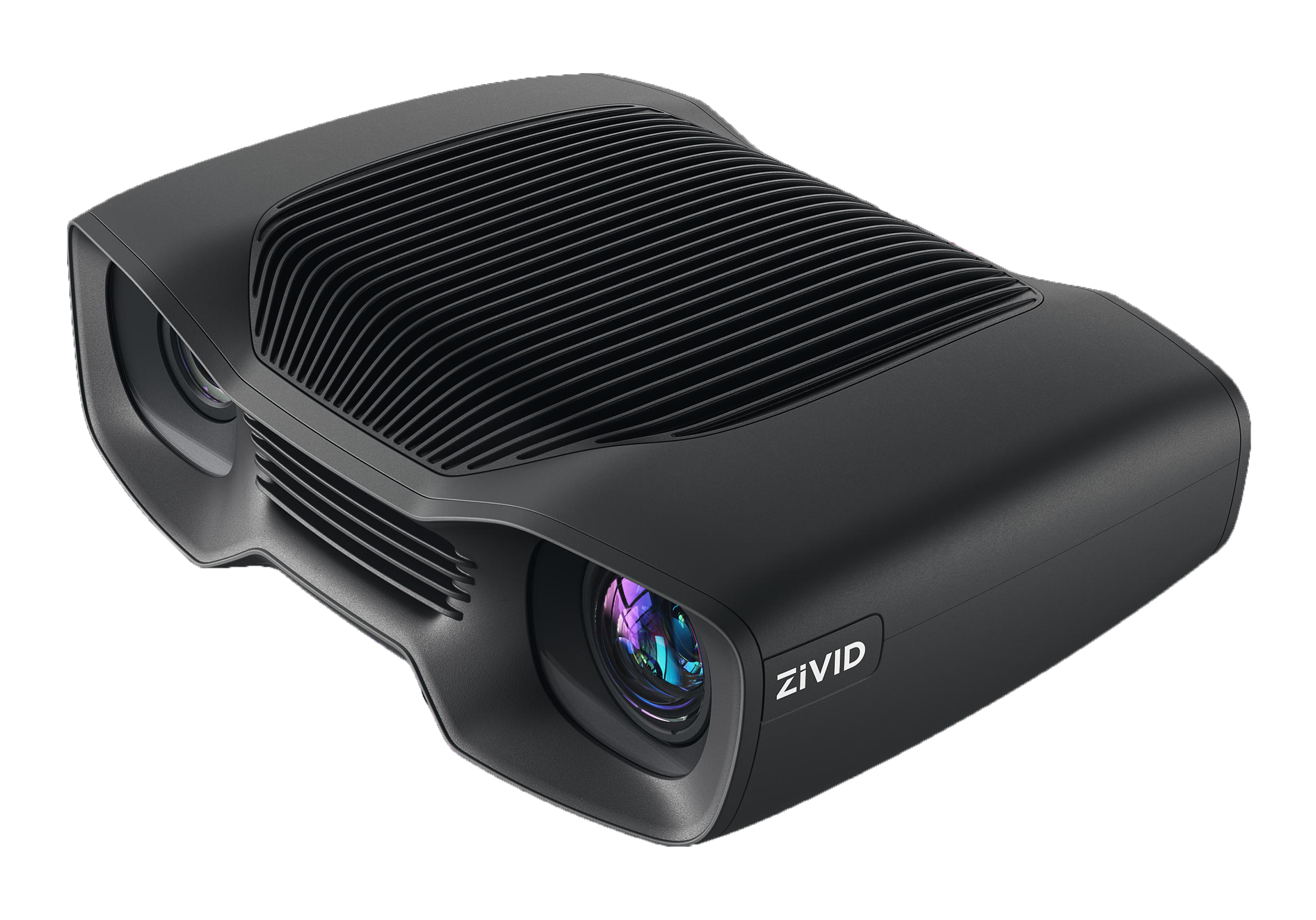

ZIVID TWO
See more.
Do more.
Human-like vision for pick and place robotics.
Zivid Two gives you exceptional 3D image quality lightning fast in an ultra-compact form-factor. Design fast, reliable pick and place robots cells capable of handling a wide variety of challenging objects and scenes.

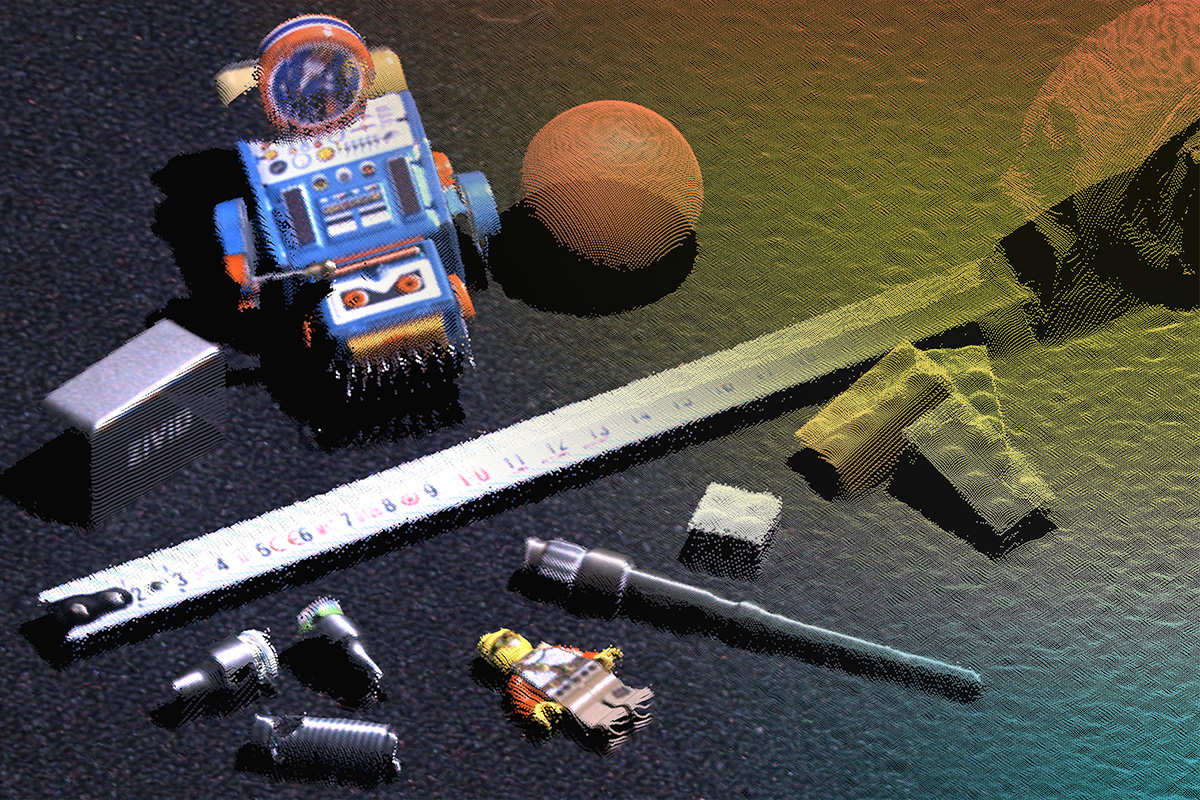

See tiny objects and the fine details.
High resolution and precision point clouds of even very small, densely packed or highly detailed objects. Distinguish features smaller than 5 mm.
| 2.3 Mpix HD resolution | 55 μm Point precision | Minimal occlusion 112 mm. baseline |

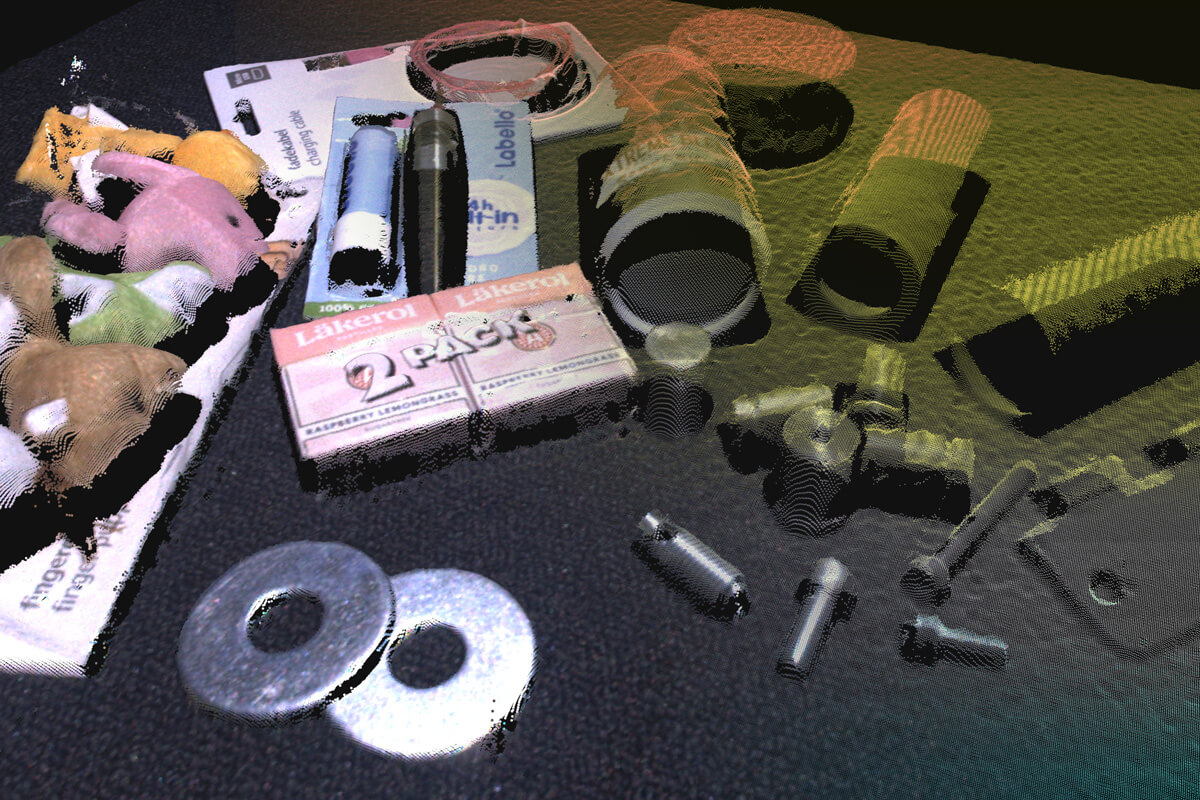

See reflective and shiny objects.
Take images of traditionally challenging parts such as sheet metal, machined and polished parts, glossy packaging, semi-transparent and plastic wrapped objects. Excellent suppression of artifacts from reflections, interreflections, specular highlights and high contrast transitions.
ART | 3D HDR |

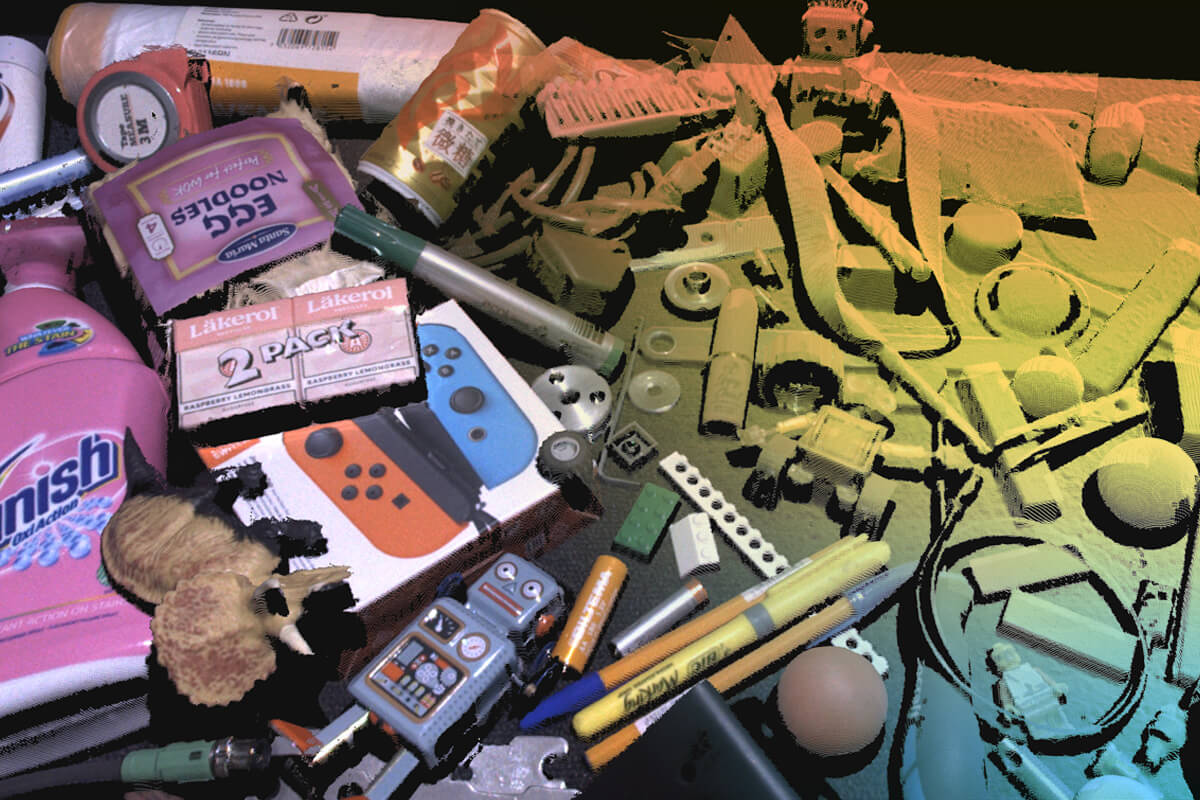

See a wide variety of objects.
The unique combination of native color and high dynamic range enables imaging of a broad range of objects. Plastic, ceramic, metal, cardboard, wood, colored, textured, light, dark and absorptive. Single or mixed SKU bin scenarios, densely stacked or randomly arranged.
| 3D RGB Native colors | White light Broad material coverage |

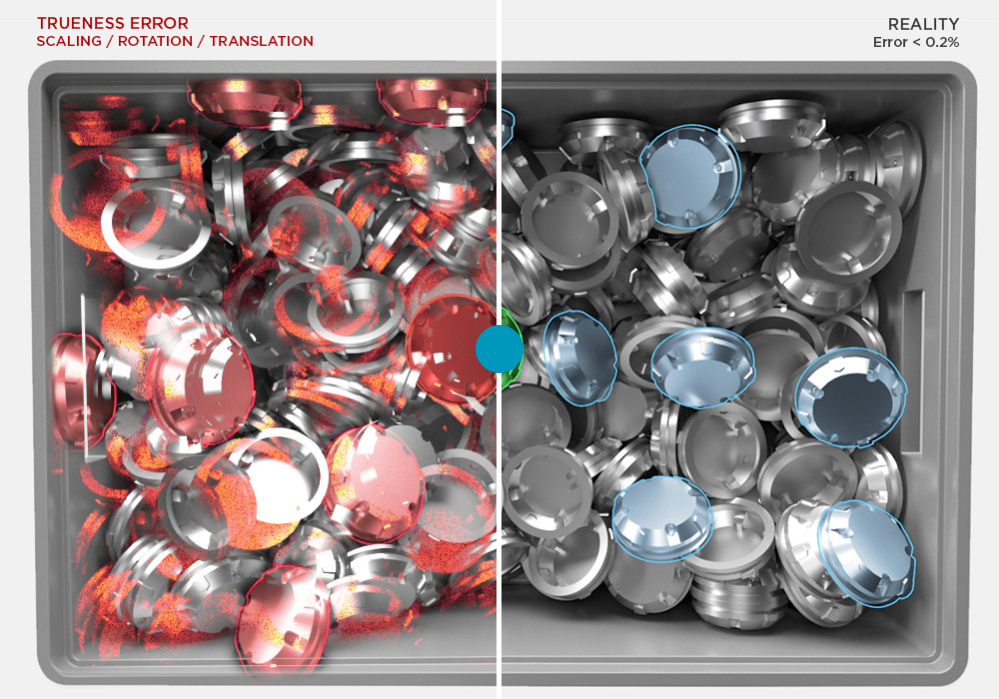

| < 0.2% at focus distance Dimension trueness error | 3D hand-eye calibration |
Less mispicks and crashes.
Minimal trueness drift and variation across the full operating temperature range and under mechanical stress from handling and use.
| Floating thermal calibration | Mechanical and thermal stability |

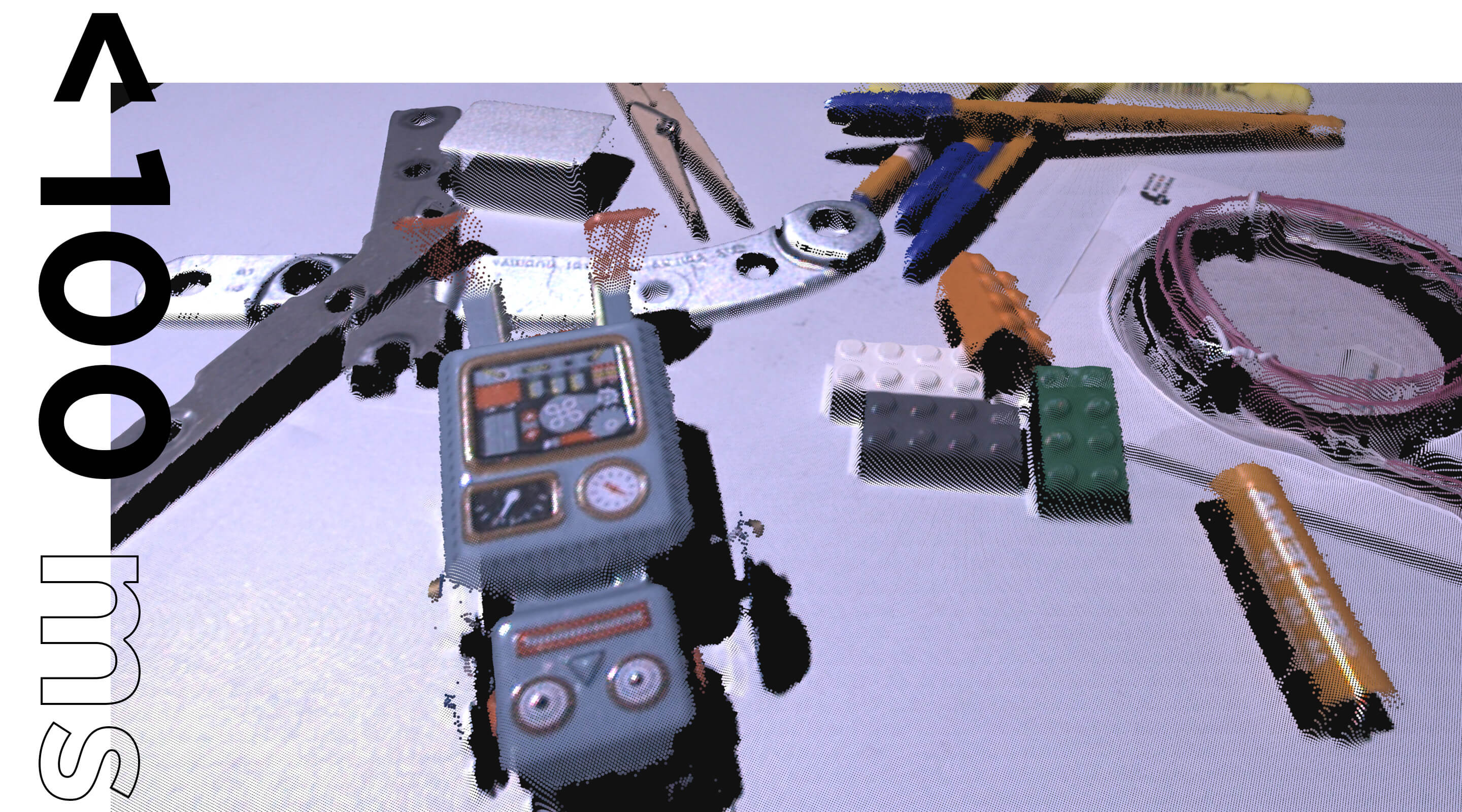

<100 ms capture time.
Low to medium dynamic range scenes. Wide variety of objects in all shades, except the darkest black and absorptive.

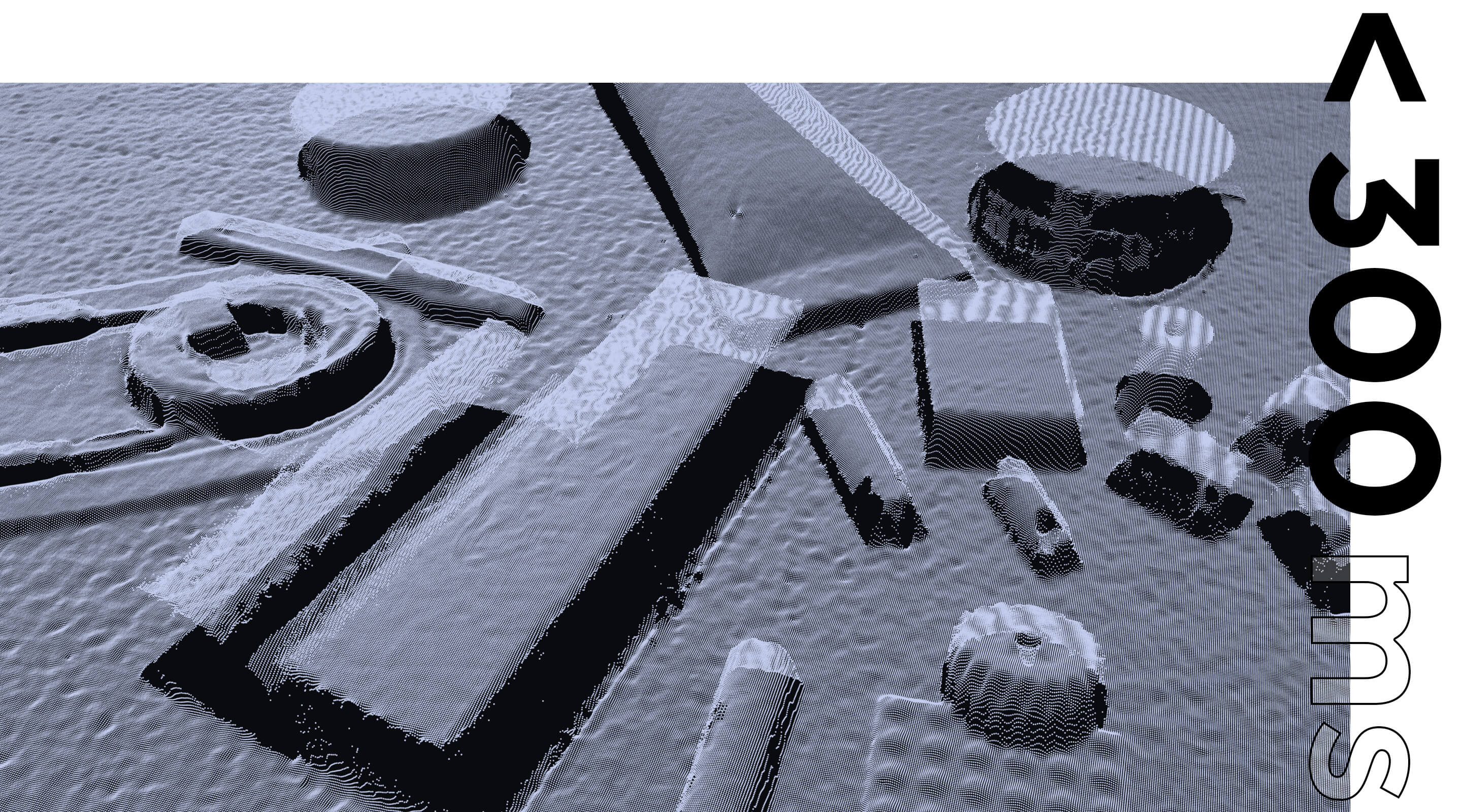

<300 ms capture time.
High dynamic range scenes. Highly shiny and reflective, white and dark absorptive objects in the same scene.

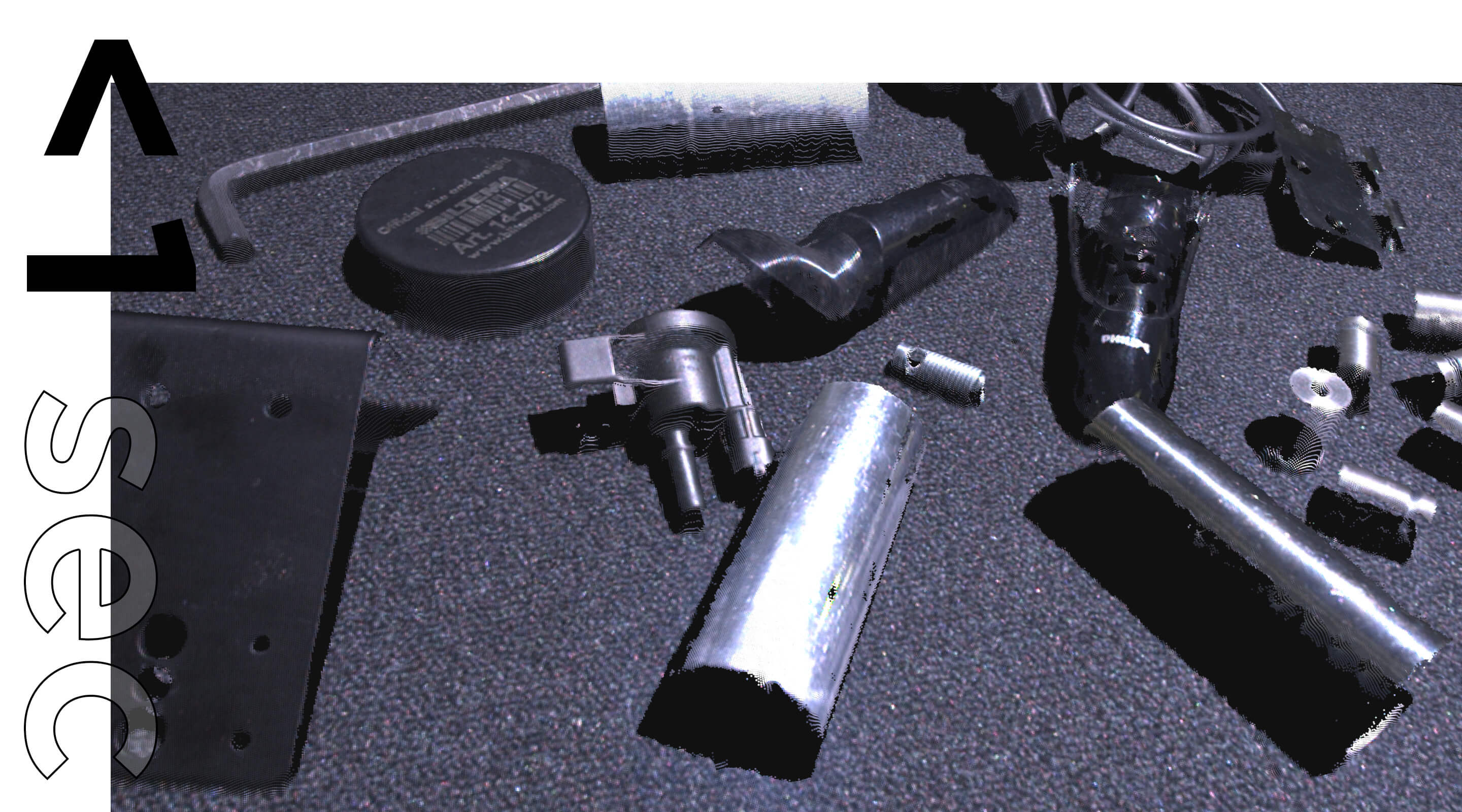

<1s capture time.
Extreme dynamic range scenes or longer working distances. Highly specular, chrome plated and mirror like. Objects positioned with steep angles away from the camera and super absorptive absolute black objects.

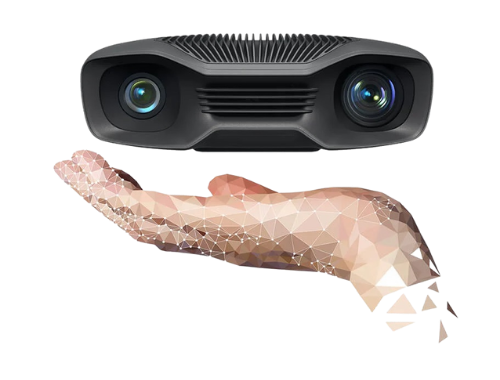

| 169 x 122 x 56 mm Palm sized | 940 grams Maximize robot maneuverability | 60 ms Minimize acquisition time |

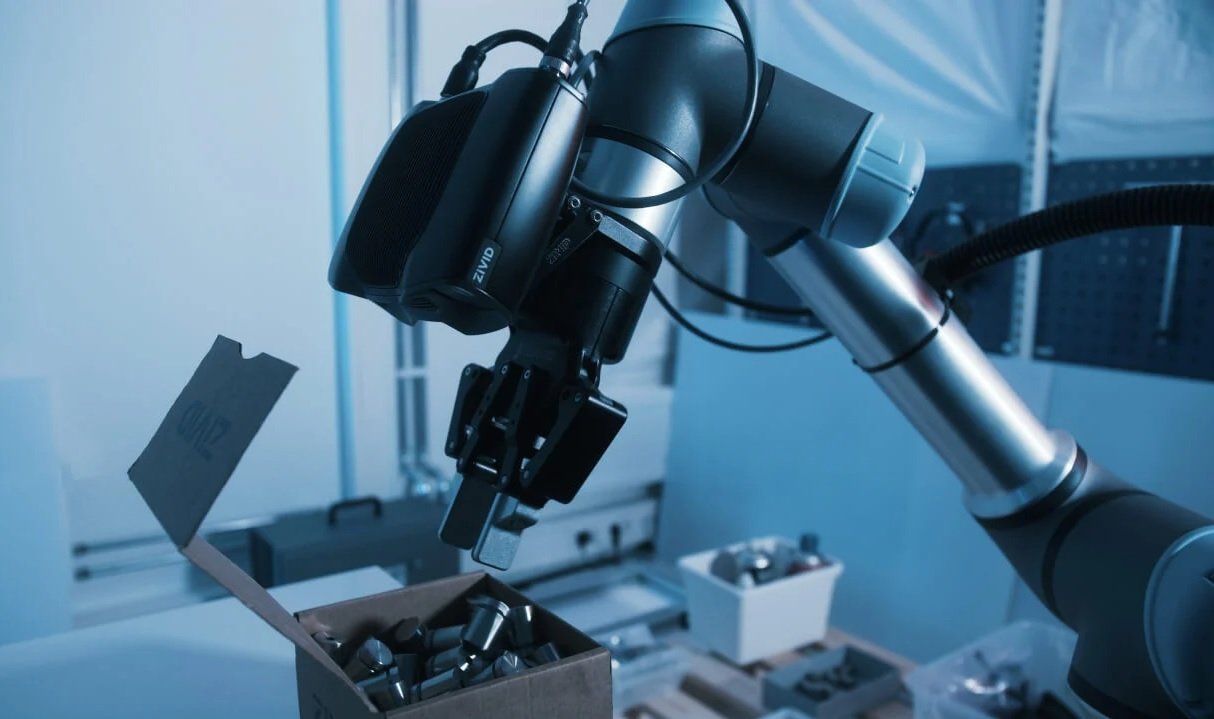

Extended field of view. Leverage on-arm camera to cover larger bins, pallets and flow racks. Use a single on-arm camera for multiple bins or pallets. | Multi-view imaging. Capture images from multiple or different viewpoints to improve object recognition and reliably empty the bin. |
Industrial grade.
High performance 3D camera designed, manufactured and tested for demanding industrial applications.
Reliable operation. Rugged design ensuring reliable operation in harsh industrial environments.
| Consistent performance. Engineered and calibrated to deliver consistent high performance over the full operating temperature, camera settings and system configurations.
|
